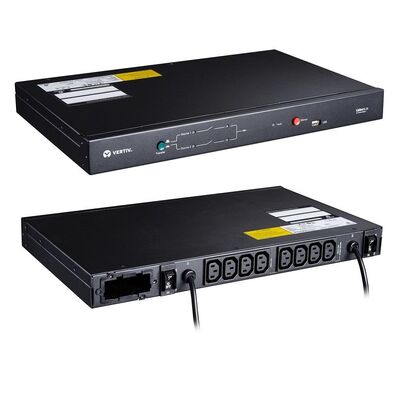

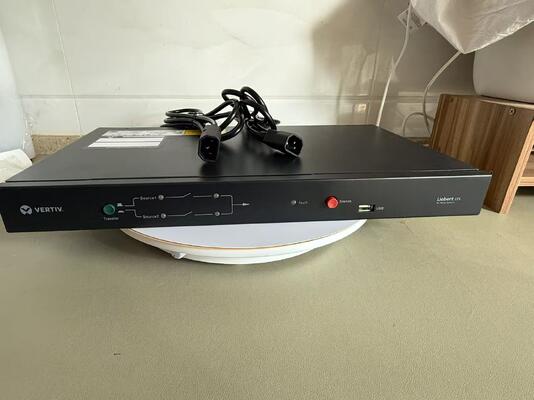

STS (System Transfer Switch) provides two power sources for important single power source load withautomatic transfer function, and the load is powered by the main power source when the main powersource is normal When the main power source fails, the load can be automatically transferred to backuppower source quickdy. After the main power source restores to normal, the load can be transferred backto the main power source.
Specification
| Items | (10A, 16A) Specifications | (32A) Specifications | |
|
Input |
Input source | Two AC inputs | |
| Input mode | 1Ф+N+PE | ||
| Rated voltage | 220/230Vac | ||
| Rated frequency | 50/60Hz | ||
| Voltage range | 150~300Vac | ||
| Frequency range | Rated frequency±5Hz | ||
| Voltage distortion | <10% | ||
|
Output |
Power factor | 0.75~1.0 leading or lagging | 0.8~1.0 leading or lagging |
| Overload capability | 125%, 30min | ||
| Efficiency (100% linear load) | 0.99 | 0.98 | |
|
Transfer |
Number of poles | 2 poles | |
| Interrupt time for automatic transfer | <6ms(typical value), <11ms(Max value) | ||
| Environmental parameters | |||
| Items | Normal range | ||
| Operating temperature | 0~40°C | ||
| Storage temperature | -40~70°C | ||
| Relative humidity | 5~95%, no condensation | ||
| Elevation | 3000m | ||
| Mechanical parameters | |||
|
Dimensions (H X W X D) |
Weight | ||
| Pure weight of standard unit | Including the weight of parts | ||
| 44mm×430mm×250mm (10A, 16A) | 4.5kg | 5kg | |
| 84mm×430mm×340mm (32A) | 5kg | 6kg | |
